A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Robust all-in-one trådløst system med høy fleksibilitet for lyd i kringkastingkvalitet
Utmerket lyd og konstruksjonkvalitet
Enkel å bruke og raskt oppsett
Kraftig og pålitelig trådløs overføring
Område: Inntil 100 meter / 330 fot
Inntil 8 timers brukstid

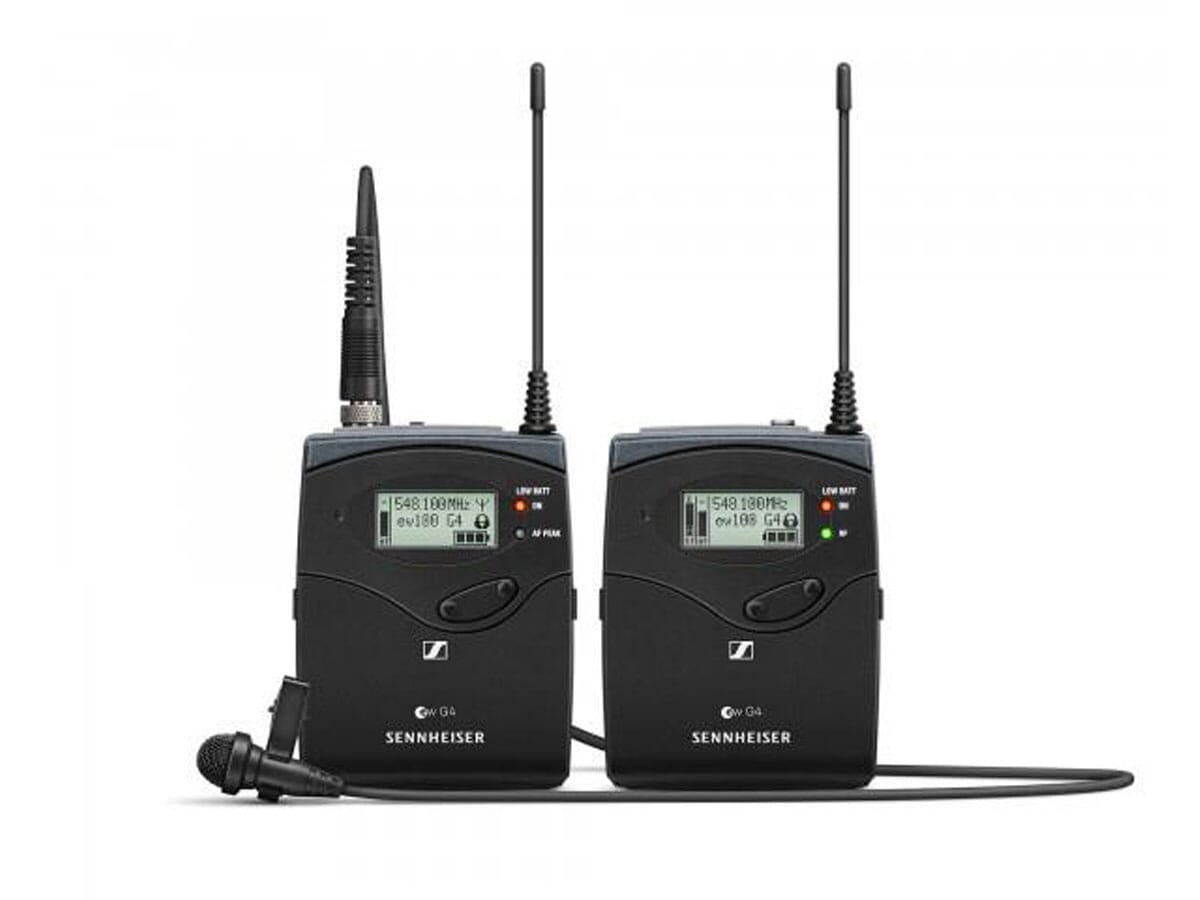

Hva er med i esken
EK 100 G4 kameramottaker
SK 100 G4 bodypack sender
ME 4 klemmemikrofon (kun ew 122 P varianter)
4 AA batterier
CA 2 kamera adapter
CL 1 3.5 mm jack kabel
CL 100 XLR til 3.5 mm jack adapter kabel
hurtigguide
sikkerhetsguide
produsenterklæringsblad
Dimensions Approx. 82 x 64 x 24 mm
Connector 3.5 mm jack
Compander Sennheiser HDX
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
THD, total harmonic distortion = 0.9 %
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Weight (incl. batteries) approx. 160 g
(incl. batteries) approx. 195 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Signal-to-noise ratio = 110 dBA
Equivalent noise level 36 dB
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: = 25 µA
with transmitter switched off: = 25 µA
with transmitter switched off: = 25 µA
Adjacent channel rejection = 65 dB
Input impedance 40 kO, unbalanced / 1 MO
68 kO, unbalanced
Intermodulation attenuation = 65 dB
Max. Input voltage 3 Veff
3.3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1 frequency bank
with up to 12 programmable channels
RF sensitivity < 1.6 µV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1 frequency bank
with up to 12 programmable channels
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Frequency stability = ±15 ppm
Blocking = 70 dB
