En lyd løsning i kringkastingkvalitet.
Gir deg maksimal fleksibilitet for din video lyd og feltopptaksprogrammer.
Et robust, trådløst mikrofonsystem som gir utmerket lydkvalitet, enkel montering og enkel bruk.
Multifunksjonsett for mobil journalistikk og dokumentar.
Den kraftige plug-on senderen SKP 100 forvandler en hver kablet, dynamisk mikrofon til en trådløs sender,
mens klemmemikrofonen ME 2-II (omni-direksjonal), som er enkel å bruke, gir en utmerket
taleforståelse under intervjuer.
Robust all-in-one trådløst system med høy fleksibilitet for lyd i kringkastingkvalitet
Utmerket lyd og konstruksjonkvalitet
Enkel å bruke og raskt oppsett
Kraftig og pålitelig trådløs overføring
Område: Inntil 100 meter / 330 fot
Inntil 8 timers brukstid

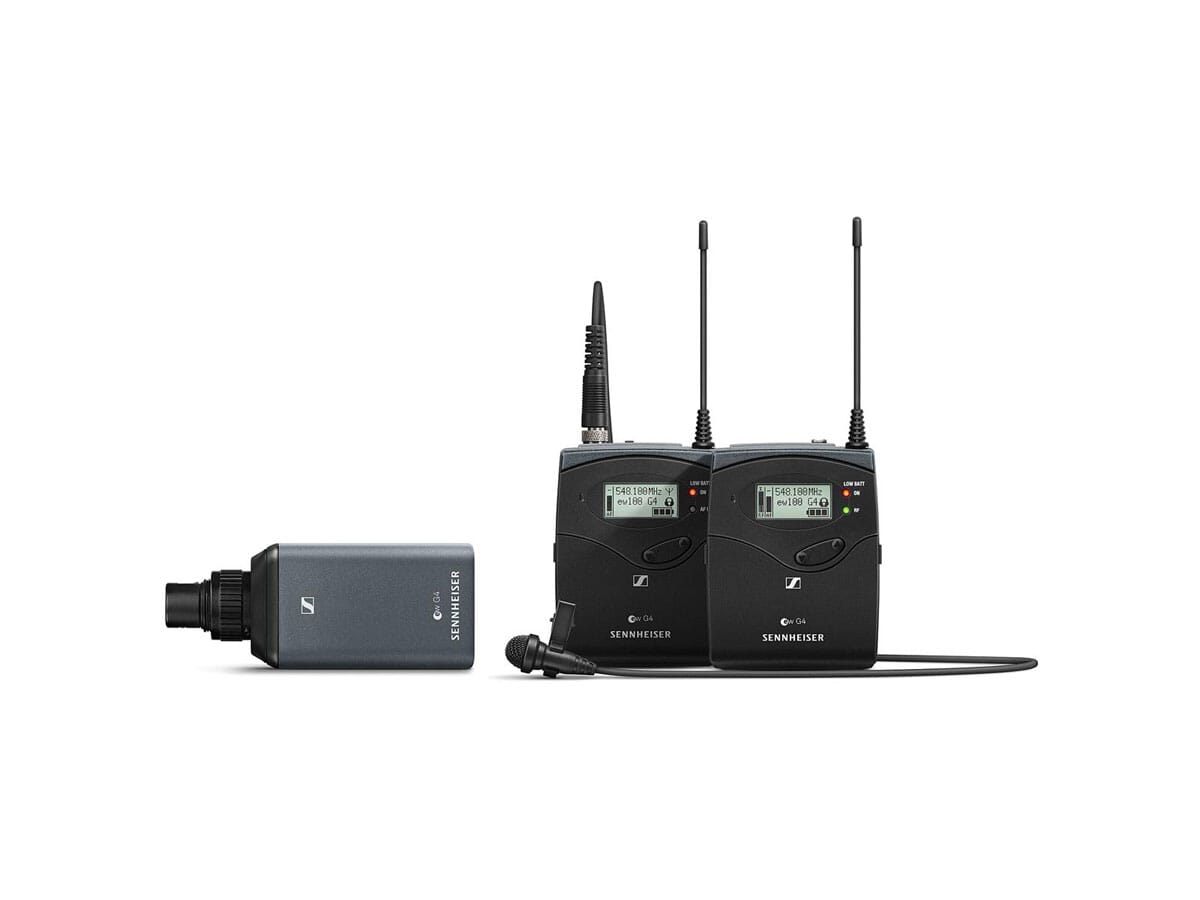

Hva er med i esken
EK 100 G4 kameramottaker
SK 100 G4 bodypack sender
SKP 100 G4 plug-on sender
ME 2 klemmemikrofon
6 AA batterier
CA 2 kamera adapter
CL 1 3.5 mm jack kabel
CL 100 XLR til 3.5 mm jack adapter kabel
hurtigguide
sikkerhetsguide
produsenterklæringsblad
Dimensions Approx. 82 x 64 x 24 mm
Approx. 105 x 43 x 43 mm
Connector 3.5 mm jack
Compander Sennheiser HDX
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
THD, total harmonic distortion = 0.9 %
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Weight (incl. batteries) approx. 160 g
(incl. batteries) approx. 195 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Signal-to-noise ratio = 110 dBA
Equivalent noise level 36 dB
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: = 25 µA
with transmitter switched off: = 25 µA
with transmitter switched off: = 25 µA
Adjacent channel rejection = 65 dB
Input impedance 40 kO, unbalanced / 1 MO
68 kO, unbalanced
Intermodulation attenuation = 65 dB
Max. Input voltage 3 Veff
3.3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1 frequency bank
with up to 12 programmable channels
RF sensitivity < 1.6 µV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1 frequency bank
with up to 12 programmable channels
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Frequency stability = ±15 ppm
Blocking = 70 dB
