Versatile and feature-rich digital wireless system for those who sing,
speak or play instruments that allows for seamless product pairing and
management via the EW-D Smart Assist App.

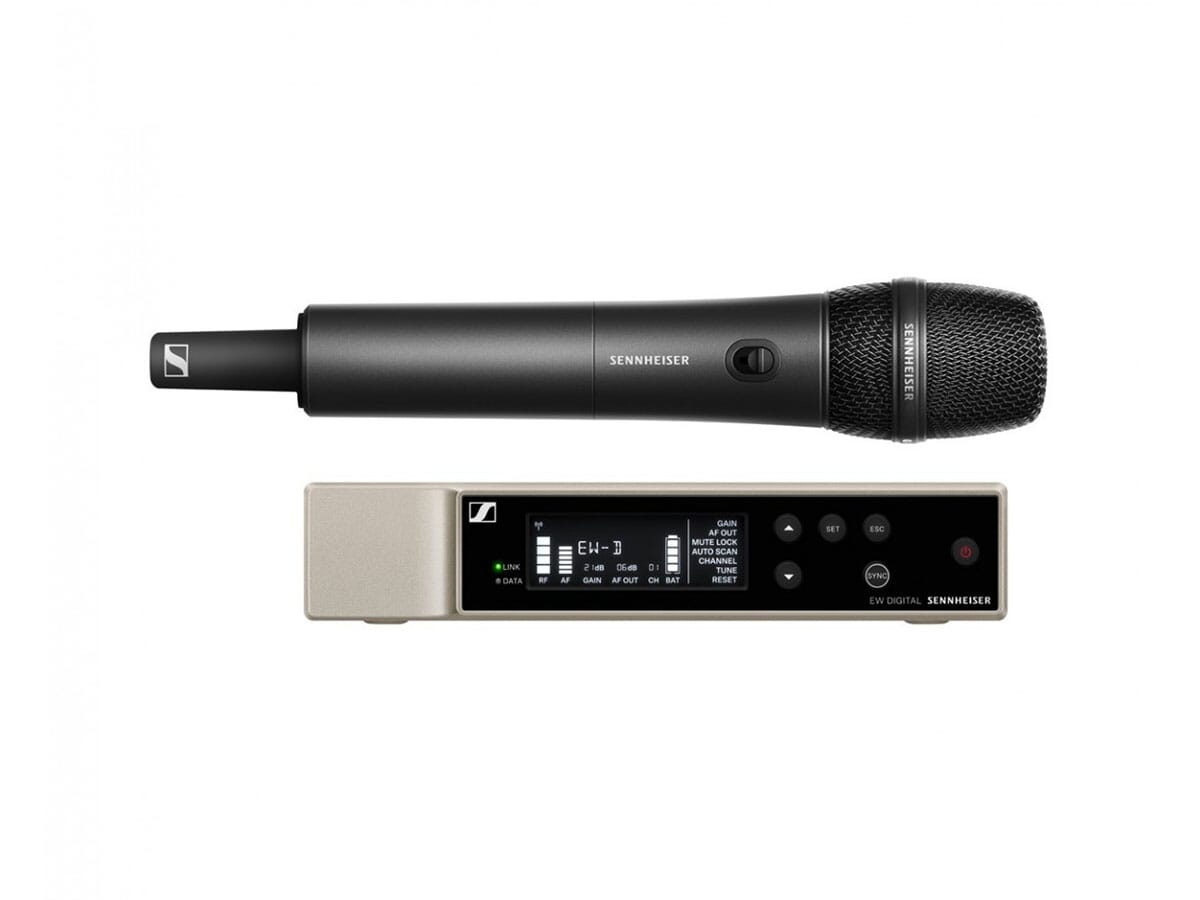

Receive state-of-the-art live sound featuring Sennheiser‘s
renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Technical Data:
Dimensions: 212 x 44 x 189 mm
405 x 350 x 73 mm
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Sound pressure level (SPL) 154 dB
Transducer principle dynamic
Weight approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)
3.1 kg
approx. 1000 g (without antennas and power supply)
Pick-up pattern cardioid
Sensitivity 2.1 mV/Pa
THD, total harmonic distortion = -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Power supply 2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption = 300 mA
< 300 mA
Input voltage range 11 - 13 V ?
2.0 - 4.35 V
Audio output level 18 dBu max.
Transmission power BLE: max. 10 mW EIRP
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
Operating relative humidity 5 - 95 % (non-condensing)
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Features:
Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
