The AWC62 is comprised of a high-power coaxial 165 mm (6.5 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole-piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies.
Features
Highly weather-resistant IP56 rating.
Consistent 110° x 110° broadband pattern control.
Components:
• 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
• 25 mm (1 in) exit compression driver
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection.
70 Hz – 18 kHz frequency response.

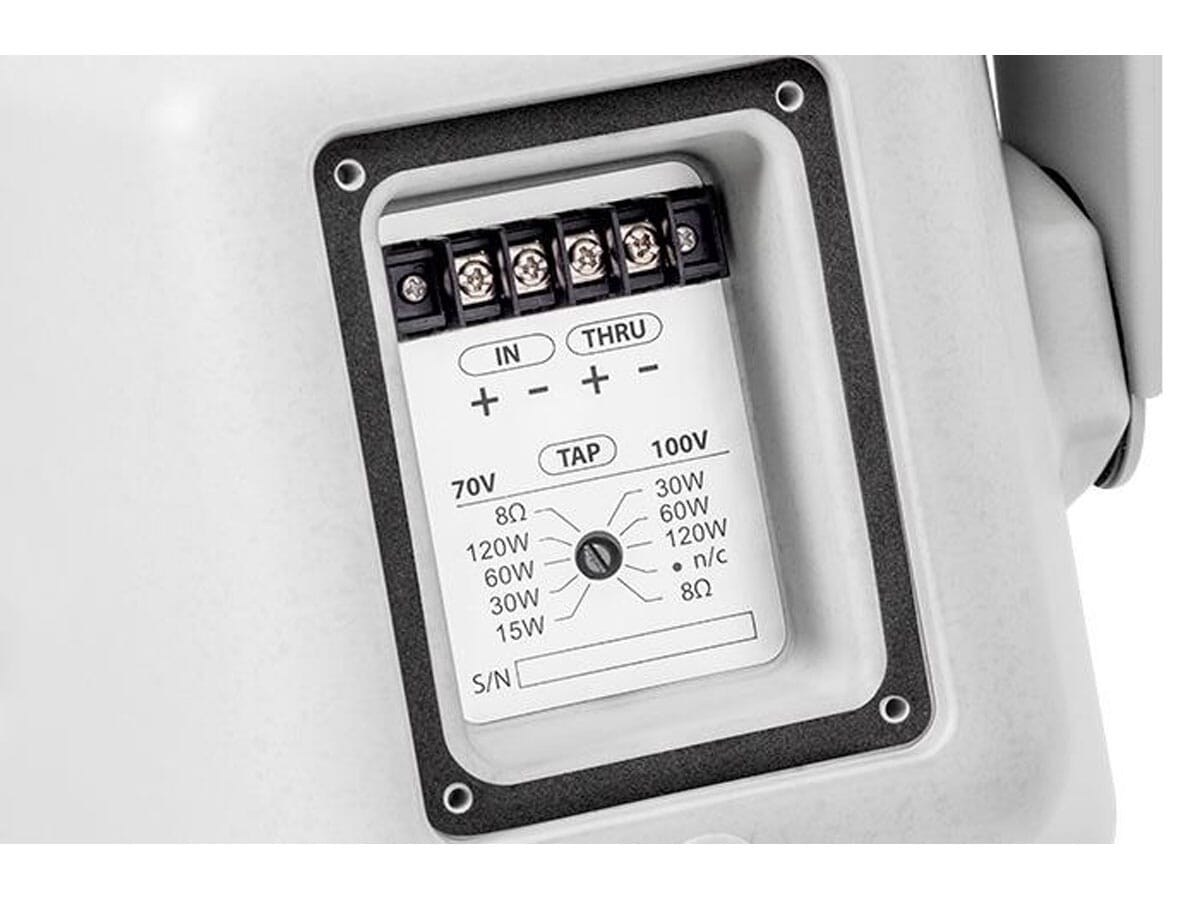

120 Watt 70V/100V multi-tap (built-in transformer) or direct 8O low-impedance.
